山水为镜,诗意栖息|湖州科技城智能科学中心
设计单位:设计人员:
水的流线,山的形体
延绵的建筑流线构筑出光影姿态
借助半围合天然水系
将自然、建筑、人文、科技紧密联系在一起
高低起伏充分体现了建筑的美学艺术
项目概况
Project overview

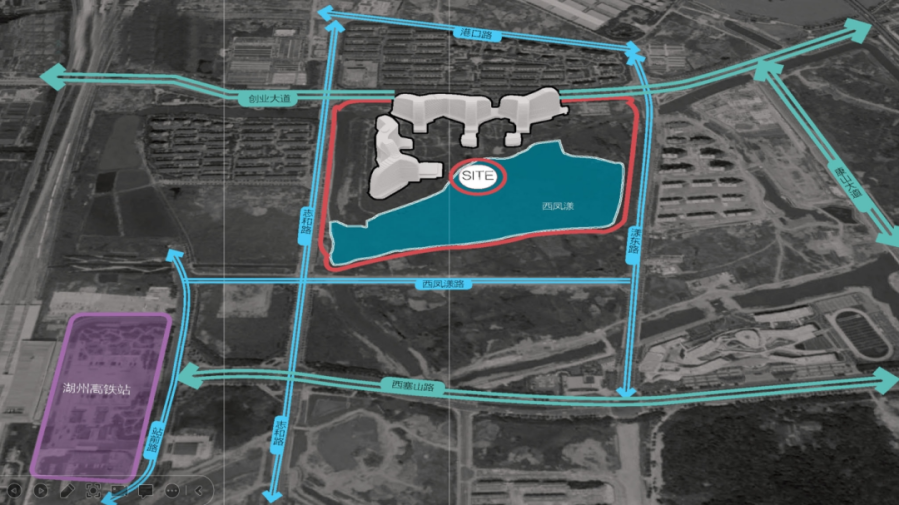

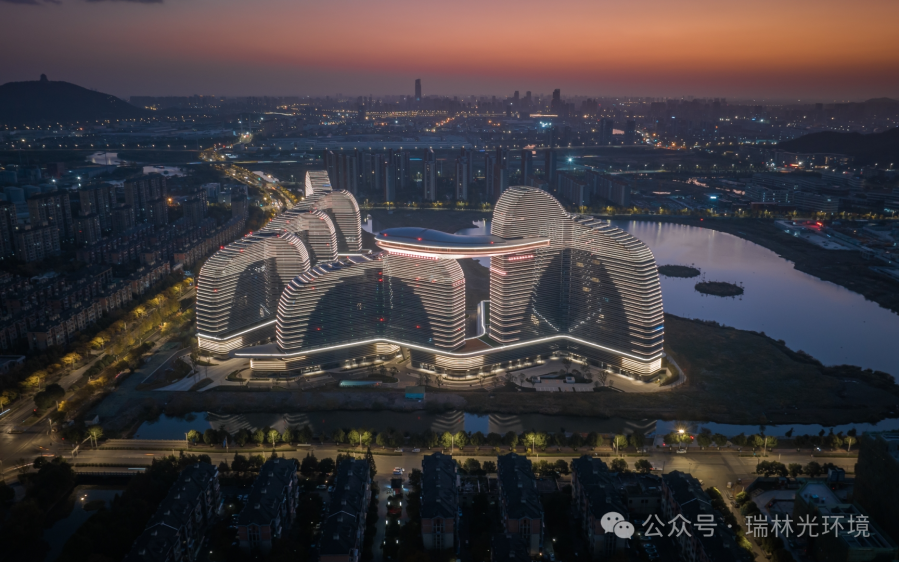

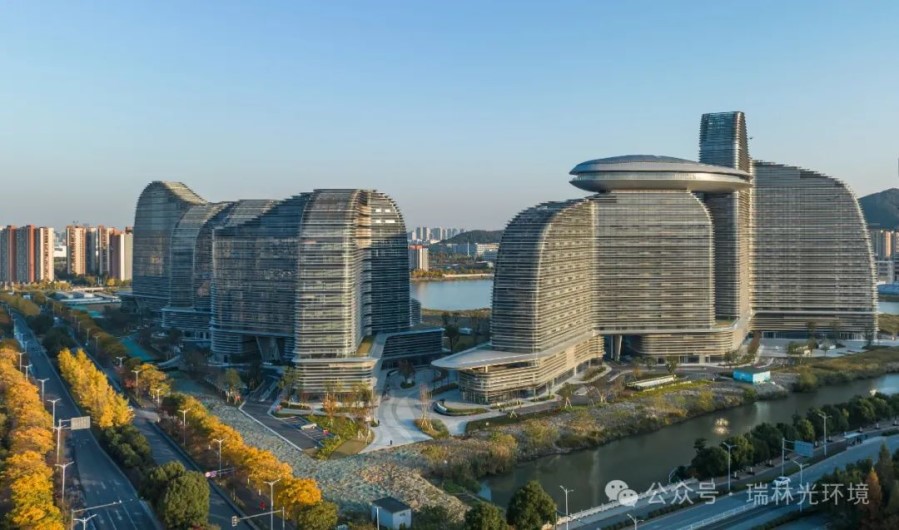

项目位于湖州南太湖新区,地处绿色智造生态科技城核心位置,距离西南侧湖州高铁站仅1km,是高铁门户示范区域。
The project is located in the South the Taihu Lake New District of Huzhou, at the core of Green Intelligent Eco tech City, only 1km away from the Huzhou High speed Railway Station in the southwest, which is a demonstration area of high-speed railway portal.

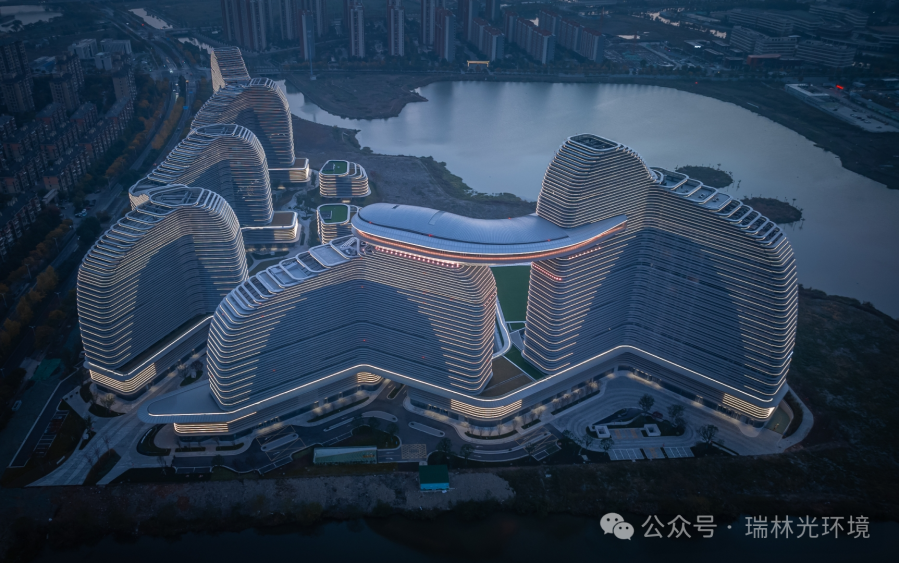

项目由5幢模拟山型的建筑构成,沿约15万方的西凤漾湿地公园缓慢排开,借取南侧的康山、东侧的西塞山共同营造出“三面临水,一面临山”的诗意办公环境。
The project consists of five simulated mountain shaped buildings, slowly arranged along the approximately 150000 square meter Xifengyang Wetland Park, creating a poetic office environment with Kangshan on the south side and Xisaishan on the east side.
设计理念
Design concept
“上有天堂,下有苏杭”,温婉秀气的湖州便身处苏杭中央。项目用灯光营造一幕江南“山水为镜,诗意栖息”的夜色空间。
"Heaven above, Suzhou and Hangzhou below", the gentle and delicate Huzhou is located in the center of Suzhou and Hangzhou. The project uses lighting to create a night space in Jiangnan where mountains and rivers serve as mirrors and poetic dwelling.

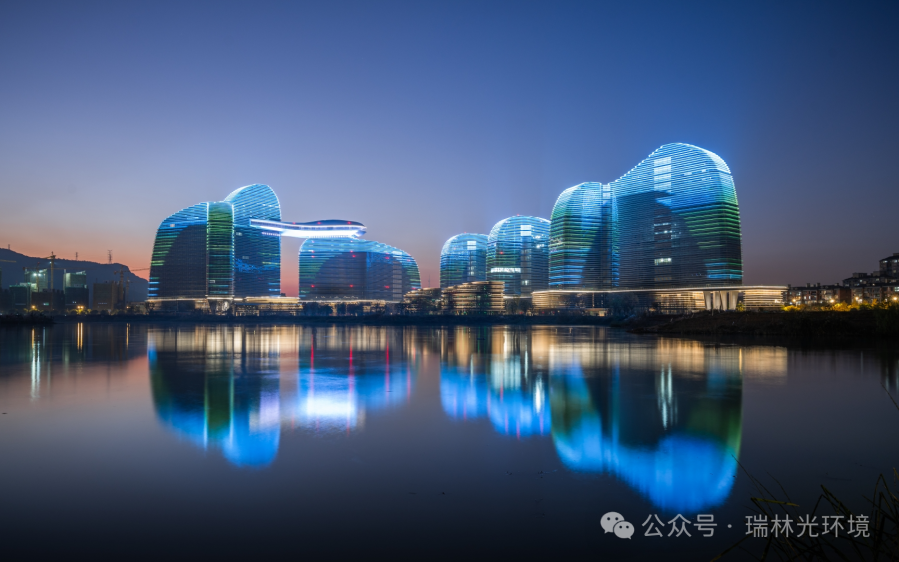

本次灯光设计围绕不同的远观视角和西凤漾湿地公园沿湖视角重点打造,突出建筑的天际线,形成夜色中独特的识别性。夜幕下,灯光沿着层层叠叠的屋檐,一路流淌而下,为清冷的玻璃幕墙增添了温柔的气息。
This lighting design focuses on different distant perspectives and the lakeside perspective of Xifengyang Wetland Park, highlighting the skyline of the building and creating a unique recognition in the night. Under the night sky, lights flow down the layered eaves, adding a gentle touch to the cold glass curtain wall.

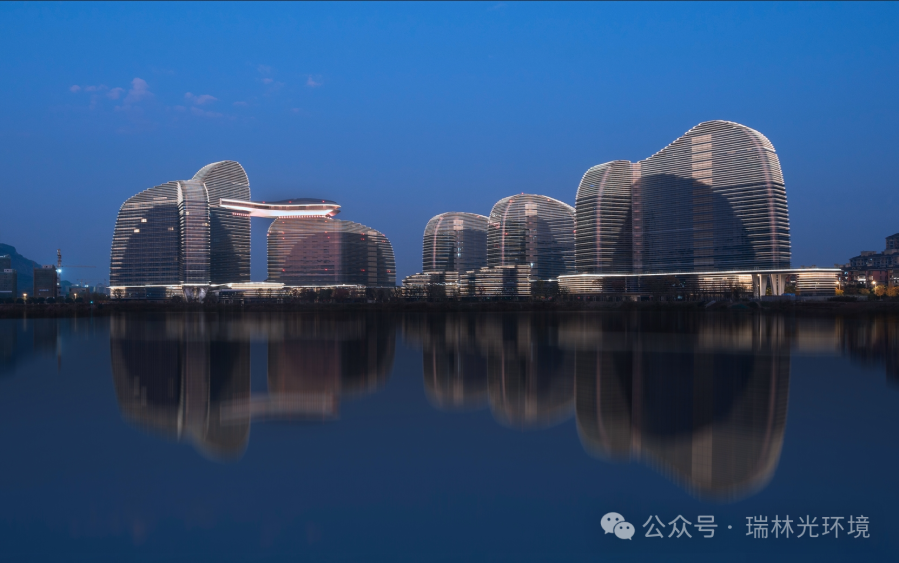

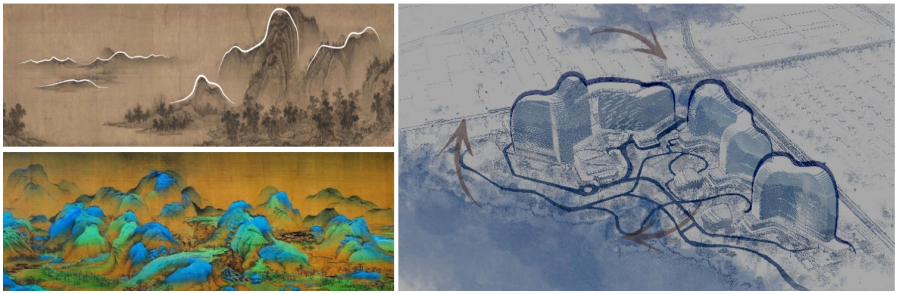

以王希孟 《千里江山图》中的青绿着色为整体色调,沿着建筑外轮廓勾勒曲线形状,打造低亮度的生态灯光环境,意在绿水青山常在。
Using the green and green coloring in Wang Ximeng's "Thousand Miles of Rivers and Mountains" as the overall color tone, the building outlines a curved shape along the exterior contour, creating a low brightness ecological lighting environment, making green waters and mountains always present.
项目实施
Project implementation
立面幕墙

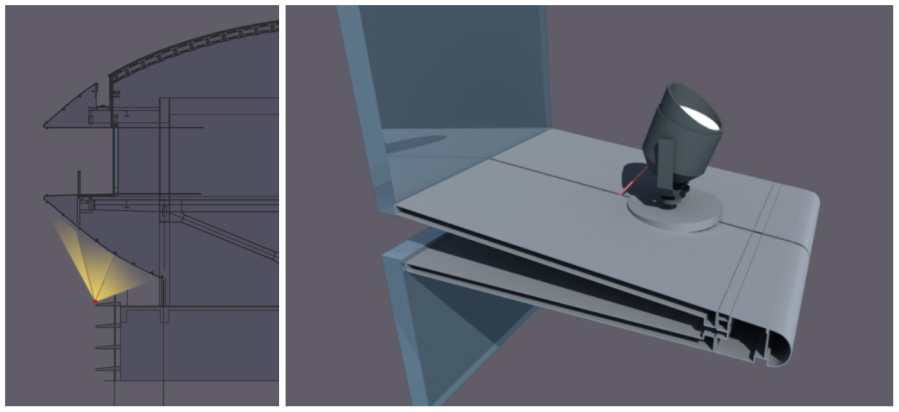

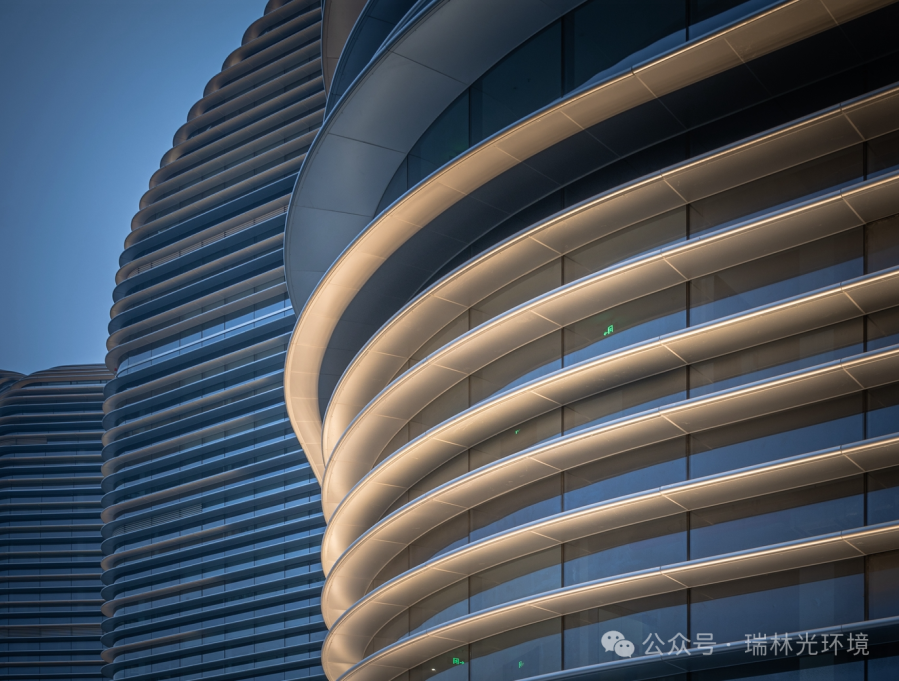

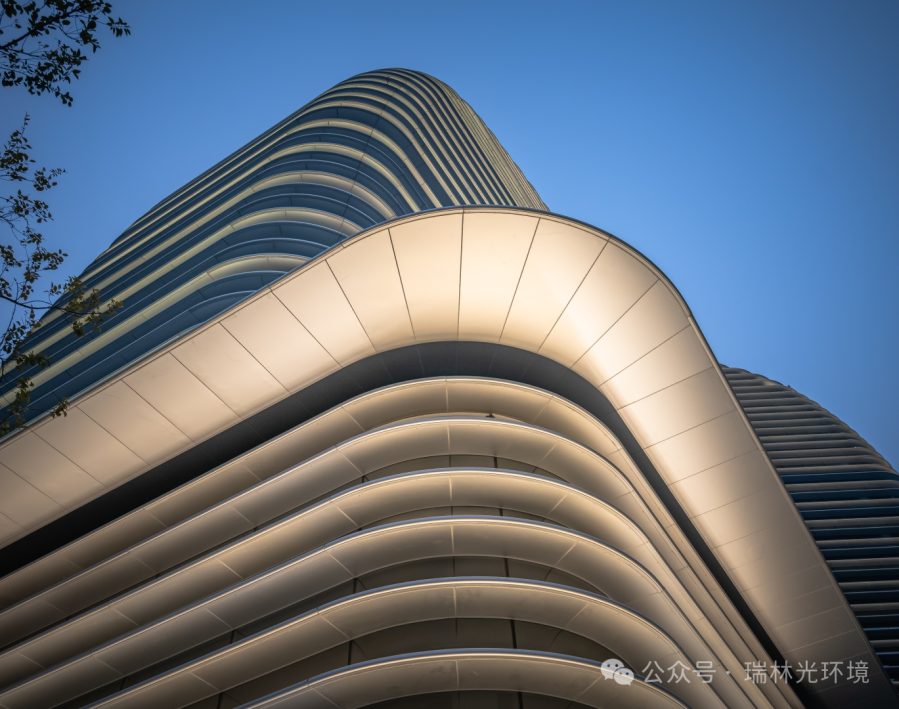

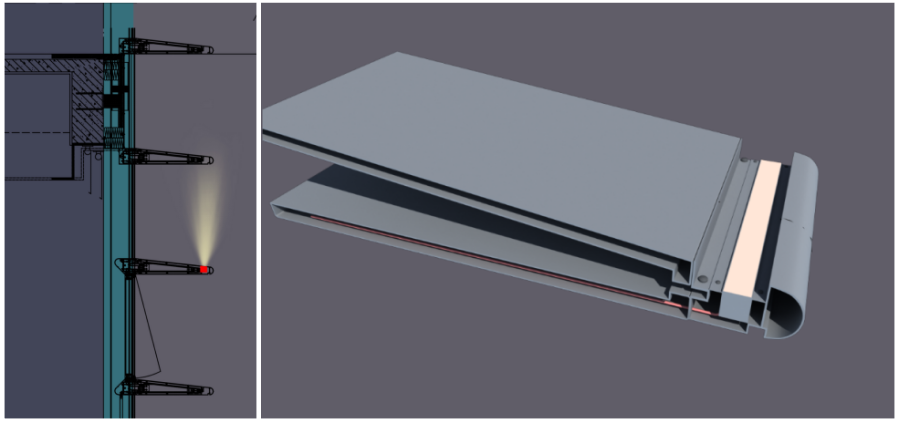

布光需要研究建筑细部。该项目建筑飘板为高反射率的浅灰色铝板,因此为灯具定制磨砂玻璃罩,隐藏安装于飘板之上,使光线由外而内反射至墙面。在视线方向形成间接照明效果,层层接力,在见光不见灯的基础上形成柔和的光影效果。
Lighting requires studying the details of the building. The floating board of the project is a light gray aluminum plate with high reflectivity, so a frosted glass cover is customized for the lighting fixtures, which is hidden and installed on the floating board to reflect light from the outside to the inside onto the wall. Create an indirect lighting effect in the direction of the line of sight, layer by layer relay, creating a soft light and shadow effect, while seeing light but not light.
云餐厅

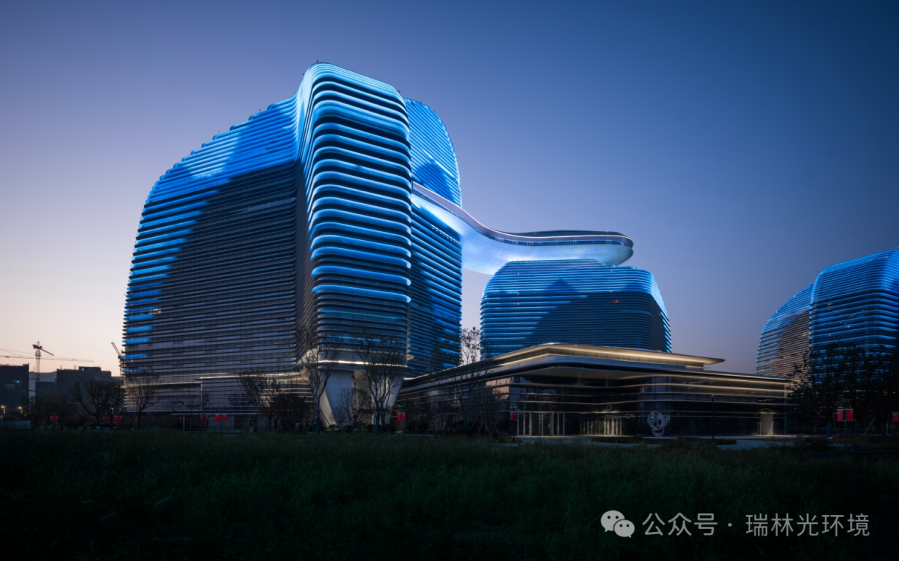

云餐厅作为连接两个主楼的独特空间,远观为飞碟形状,具有鲜明的特征。选用80w大角度投光灯,均匀分布以照亮弧形底板,保证远观视角灯光的纯粹性,留给夜色中的科技城一抹未来感。
The Cloud Restaurant, as a unique space connecting the two main buildings, has a distinctive UFO shape when viewed from a distance. Choose an 80W high angle projection light, evenly distributed to illuminate the curved bottom plate, ensuring the purity of the distant view light, leaving a futuristic feeling for the technology city in the darkness.
裙房

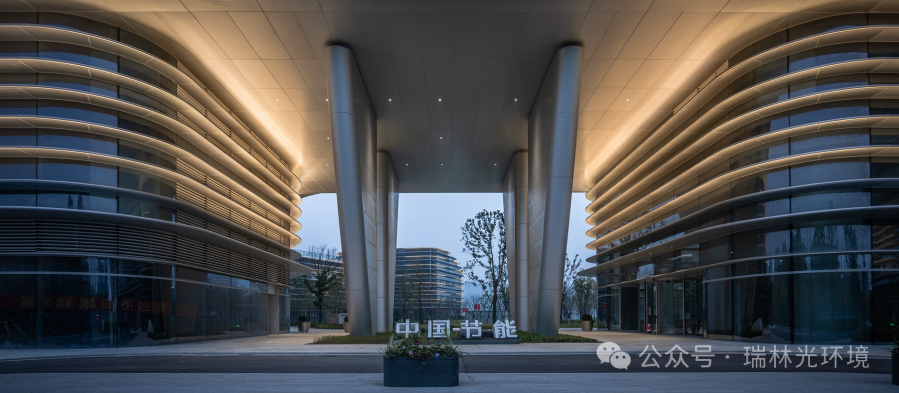

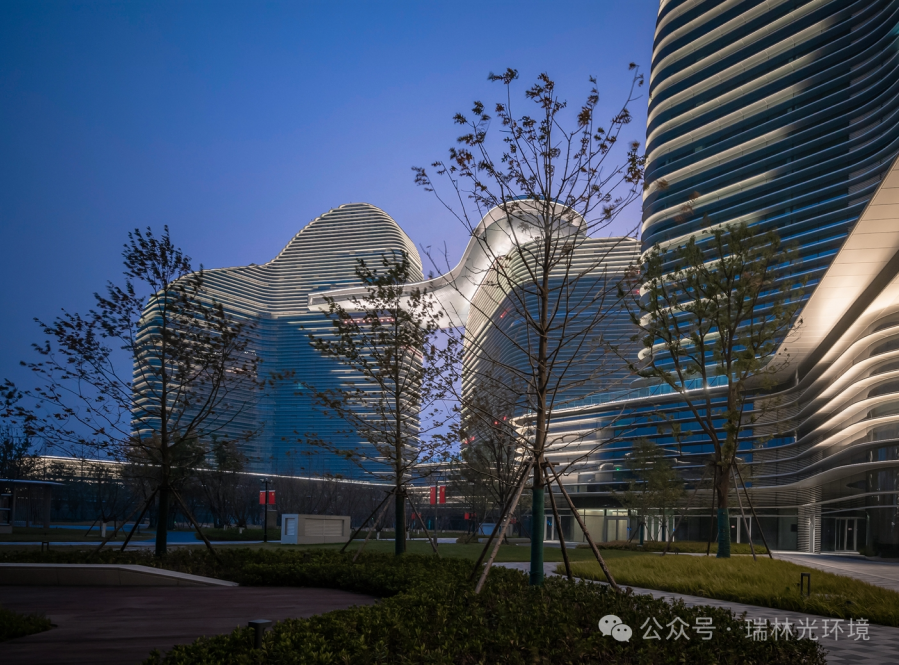

作为半开放的过渡空间,有工作闲暇的休息,也有办公商务的进出,所以灯光更应细致考虑。暖黄光的色调稳重和大气,顶棚的筒灯则可以恰当地营造温馨舒适氛围,指导人流汇集的同时,不过多干扰幕墙灯光。
As a semi open transitional space, there are work and leisure breaks, as well as office and business entrances and exits, so lighting should be carefully considered. The warm yellow light has a stable and atmospheric color tone, while the ceiling tube lights can appropriately create a warm and comfortable atmosphere, guiding the flow of people while not interfering with the curtain wall lighting.

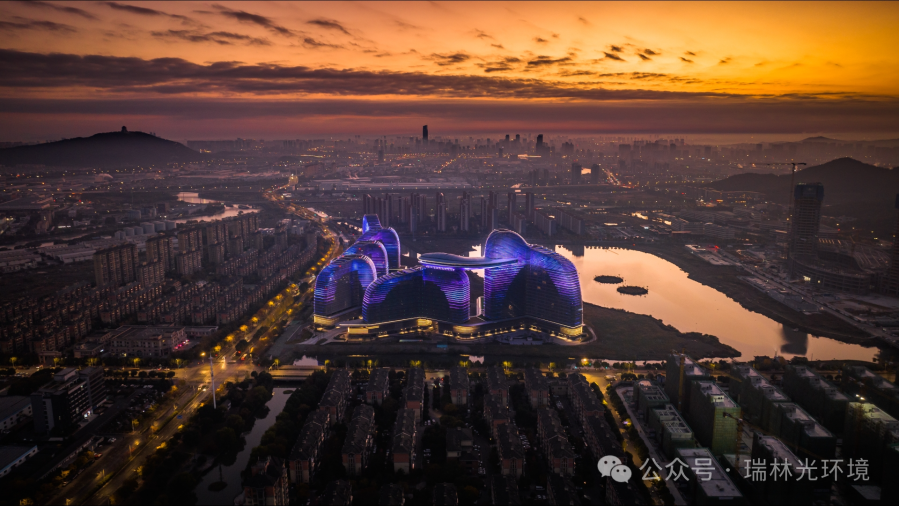

一座湖州科技城,一首山峦起伏的夜光诗。光与影、明与暗,随着时间缓慢变化,高雅、怡然自得的情愫就这样在光与影之间流动。
A Huzhou Science and Technology City, a night light poem with undulating mountains. Light and shadow, light and darkness, slowly change over time, and the elegant and contented emotions flow between light and shadow.
项目信息
Project information
项目名称|湖州科技城智能科学中心
项目位置|湖州市吴兴区
建设单位|中节能(湖州)科技城投资建设发展有限公司
占地面积|27万平方米
照明设计|
项目实施|浙江瑞林光环境集团有限公司
